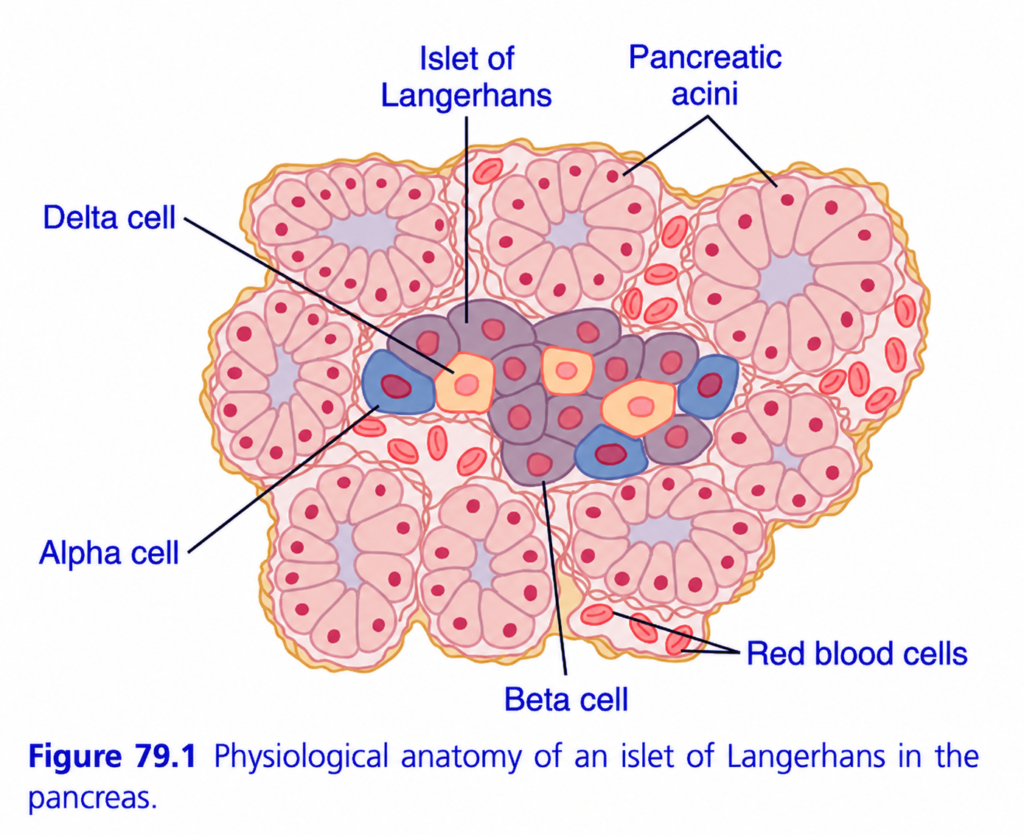

• The pancreas has two major types of tissue (Fig. 79.1):
  • Acini → secrete digestive juices into the duodenum.
  • Islets of Langerhans → secrete insulin and glucagon directly into the blood.
• The human pancreas contains about 1–2 million islets of Langerhans.
• Each islet is very small, about 0.3 mm in diameter, and is arranged around small capillaries.
• Islet cells release their hormones directly into these capillaries.
• The islets mainly contain alpha, beta, and delta cells.
• Beta cells form about 60% of islet cells and are mainly located in the center.
• Beta cells secrete:
  • Insulin
  • Amylin, also called islet amyloid polypeptide (IAPP)
• Amylin is often secreted together with insulin.
• Alpha cells form about 25% of islet cells and secrete glucagon.
• Delta cells form about 10% of islet cells and secrete somatostatin.
• A small number of PP cells are also present and secrete pancreatic polypeptide.
• These islet cells are closely connected, allowing their hormones to control one another’s secretion.
• Insulin inhibits glucagon secretion.
• Amylin inhibits insulin secretion.
• Somatostatin inhibits both insulin and glucagon secretion.

KEY CONCEPT

• Acini → digestive secretion into duodenum.
• Islets of Langerhans → hormones directly into blood.
• Beta cells 60% → insulin + amylin.
• Alpha cells 25% → glucagon.
• Delta cells 10% → somatostatin.
• PP cells → pancreatic polypeptide.
• Islet hormones can regulate each other’s secretion.

Conceptual Examples

• Beta cell:
  Beta cell → insulin + amylin.
• Alpha cell:
  Alpha cell → glucagon.
• Delta cell:
  Delta cell → somatostatin → inhibits insulin and glucagon.
• Cell-to-cell control:
  Insulin rises → glucagon secretion decreases.

INSULIN AND ITS METABOLIC EFFECTS

• Insulin was first isolated from the pancreas in 1922 by Banting and Best.
• Its discovery rapidly improved survival in patients with severe diabetes mellitus.
• Insulin has major effects on carbohydrate metabolism and therefore strongly influences blood glucose.
• However, insulin also has major effects on fat and protein metabolism.
• In diabetes mellitus, abnormal fat metabolism can contribute to acidosis and arteriosclerosis, causing serious illness and early death.
• Prolonged untreated diabetes also decreases protein synthesis.
• This causes tissue wasting and many disturbances of cellular function.
• Therefore, insulin is important for carbohydrate, fat, and protein metabolism.

INSULIN SECRETION IS ASSOCIATED WITH ENERGY ABUNDANCE

• Insulin secretion increases when the body has an abundant supply of energy, especially after eating excess carbohydrates.
• Insulin then helps store this excess energy.
• Excess carbohydrates are first stored as glycogen, mainly in:
  • Liver
  • Muscles
• Carbohydrates that cannot be stored as glycogen are converted into fat under the influence of insulin.
• This fat is then stored in adipose tissue.
• For protein metabolism, insulin increases amino acid uptake into cells.
• These amino acids are then used to form proteins.
• Insulin also inhibits the breakdown of proteins already present in cells.

KEY CONCEPT

• Insulin = major energy-storage hormone.
• ↑ Energy, especially carbohydrates → ↑ insulin secretion.
• Insulin promotes:
  • Glucose → glycogen
  • Excess carbohydrate → fat
  • Amino acids → protein
• Insulin also reduces protein breakdown.
• Therefore, insulin regulates carbohydrate, fat, and protein metabolism.

Conceptual Examples

• After excess carbohydrate intake:
  ↑ Carbohydrates → ↑ insulin → glycogen storage in liver and muscles.
• When glycogen storage is full:
  Extra carbohydrates → insulin stimulation → converted to fat → stored in adipose tissue.
• Protein metabolism:
  Insulin → ↑ amino acid uptake → ↑ protein formation + ↓ protein breakdown.
• Untreated diabetes:
  Insufficient insulin effects → ↓ protein synthesis → tissue wasting and cellular dysfunction.

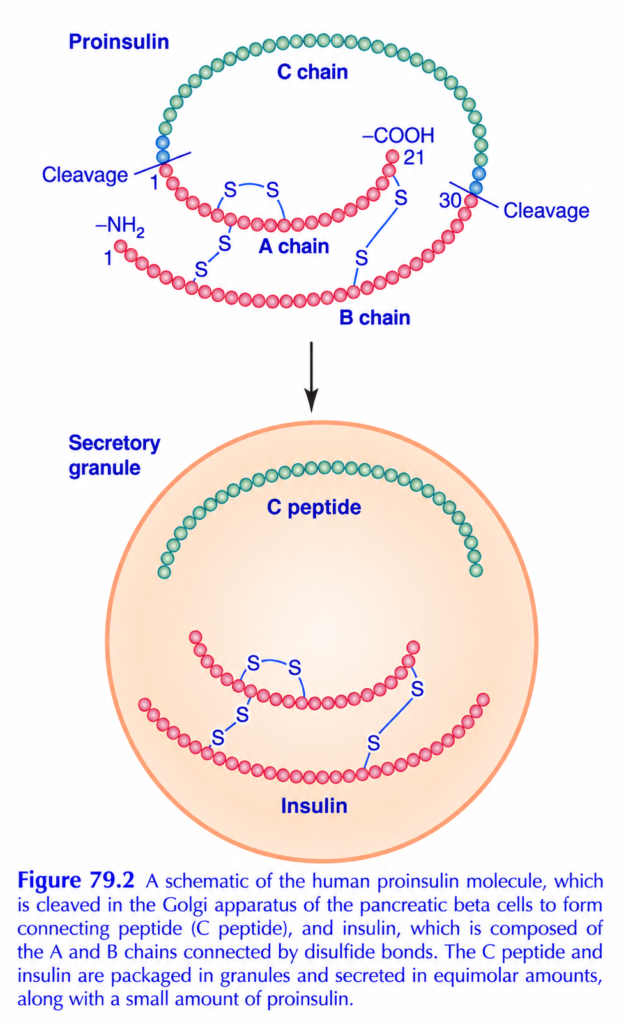

INSULIN CHEMISTRY AND SYNTHESIS

• Human insulin has a molecular weight of 5808 and consists of two amino acid chains connected by disulfide bonds (Fig. 79.2).
• If these two chains are separated, insulin loses its biological activity.
• Insulin is synthesized in pancreatic beta cells by normal protein-synthesis machinery.
• The synthesis occurs in sequence: Insulin RNA → Preproinsulin → Proinsulin → Insulin + C peptide
• Ribosomes attached to the endoplasmic reticulum first produce preproinsulin, with a molecular weight of about 11,500.
• Preproinsulin is then cleaved in the endoplasmic reticulum to form proinsulin, with a molecular weight of about 9000.
• Proinsulin contains three peptide chains:
  • A chain
  • B chain
  • C chain
• In the Golgi apparatus, most proinsulin is further split into:
  • Insulin → A and B chains joined by disulfide bonds.
  • C peptide → the connecting peptide.
• Insulin and C peptide are stored in secretory granules and released in equal molar amounts.
• About 5%–10% of the secreted product remains as proinsulin.
• Proinsulin and C peptide have almost no insulin activity.
• C peptide can activate sodium-potassium ATPase and endothelial nitric oxide synthase, although the physiological importance of these effects is still uncertain.
• Measuring C peptide helps determine how much natural insulin a patient is still producing.
• In type 1 diabetes, patients who cannot produce insulin usually also have very low C-peptide levels.
• After secretion, insulin circulates mainly in the blood in an unbound form.
• Its plasma half-life is only about 6 minutes, and most insulin is removed within 10–15 minutes.
• Insulin not bound to target-cell receptors is broken down by insulinase, mainly in the:
  • Liver
  • Kidneys and muscles to a lesser extent
  • Other tissues in small amounts
• This rapid removal allows the body to switch insulin effects off quickly when they are no longer needed.

KEY CONCEPT

• Preproinsulin → Proinsulin → Insulin + C peptide.
• Mature insulin = A chain + B chain connected by disulfide bonds.
• Insulin and C peptide are secreted in equal molar amounts.
• C peptide indicates the body’s own insulin production.
• Insulin has a short half-life of about 6 minutes and is mainly degraded in the liver.

Conceptual Examples

• Insulin synthesis:
  Preproinsulin → proinsulin → insulin + C peptide.
• C-peptide measurement:
  Low natural insulin production → low C peptide.
• Type 1 diabetes:
  Little or no insulin production → markedly decreased C peptide.
• Insulin removal:
  Insulin enters blood → acts on receptors → remaining insulin is rapidly degraded, mainly by the liver.

INSULIN ACTIVATION OF TARGET CELL RECEPTORS AND CELLULAR EFFECTS

• To produce its effects, insulin first binds to and activates its membrane receptor on target cells (Fig. 79.3).
• The insulin receptor has a molecular weight of about 300,000 and contains four subunits joined by disulfide bonds:
  • 2 alpha subunits → completely outside the cell membrane.
  • 2 beta subunits → pass through the membrane and extend into the cytoplasm.
• Insulin binds to the alpha subunits outside the cell.
• This activates the beta subunits inside the cell and causes their autophosphorylation.
• Therefore, the insulin receptor acts as an enzyme-linked receptor.
• Autophosphorylated beta subunits activate tyrosine kinase.
• Tyrosine kinase then phosphorylates several intracellular proteins, especially insulin-receptor substrates (IRS).
• Different tissues contain different IRS types, such as IRS-1, IRS-2, and IRS-3.
• These signals activate some intracellular enzymes and inhibit others.
• In this way, insulin controls cellular metabolism of carbohydrates, fats, and proteins.
• Within seconds, insulin markedly increases glucose uptake in about 80% of body cells.
• This effect is especially important in skeletal muscle and adipose tissue, but not in most brain neurons.
• Insulin causes intracellular vesicles containing glucose transport proteins to move to and join the cell membrane.
• These transport proteins then increase glucose entry into the cell.
• After entering the cell, glucose is rapidly phosphorylated and becomes available for carbohydrate metabolism.
• When insulin disappears, the glucose-transporter vesicles leave the membrane within about 3–5 minutes and return inside the cell for later reuse.
• Insulin also increases cell membrane permeability to:
  • Amino acids
  • Potassium ions
  • Phosphate ions
• Therefore, uptake of these substances into cells increases.
• During the next 10–15 minutes, insulin changes the activity of many intracellular metabolic enzymes.
• These effects mainly occur by changing the phosphorylation state of enzymes.
• Over hours to several days, insulin produces even slower effects.
• It changes:
  • mRNA translation at ribosomes → changes production of new proteins.
  • DNA transcription in the nucleus → changes protein production further.
• Therefore, insulin can gradually remodel the cell’s enzyme machinery to produce longer-lasting metabolic effects.

KEY CONCEPT

• Insulin → alpha receptor binding → beta-subunit autophosphorylation → tyrosine kinase → IRS activation → cellular metabolic effects.
• Seconds: ↑ glucose transport, especially in muscle and adipose tissue.
• Insulin also increases cellular uptake of amino acids, K⁺, and phosphate.
• 10–15 minutes: changes activity of metabolic enzymes.
• Hours to days: changes protein synthesis and gene transcription.

Conceptual Examples

• Glucose uptake:
  Insulin binds receptor → glucose-transporter vesicles move to membrane → more glucose enters the cell.
• When insulin falls:
  Glucose-transporter vesicles leave the membrane within 3–5 minutes → glucose uptake decreases.
• Rapid enzyme effect:
  Insulin receptor activation → phosphorylation changes → metabolic enzyme activity changes within minutes.
• Long-term effect:
  Insulin → altered mRNA translation and DNA transcription → new proteins and enzymes are produced over hours to days.

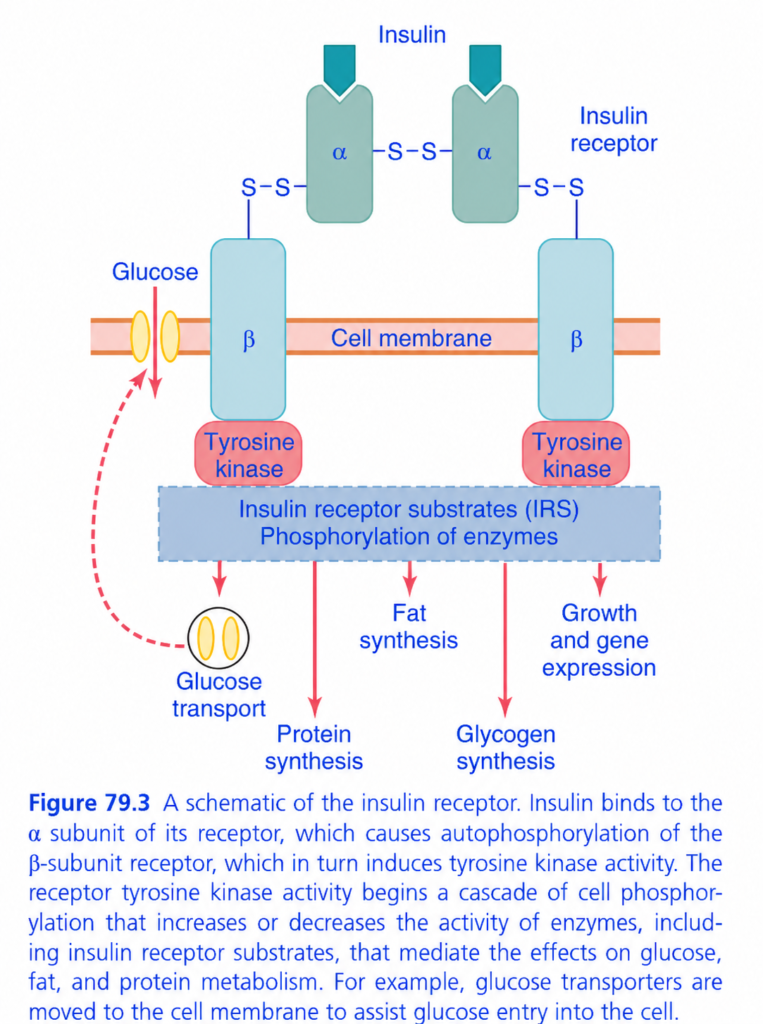

Insulin Receptor — Figure 79.3

Easiest Concept

Think of insulin as a key that switches on a receptor present in the cell membrane.

• Insulin binds to the α (alpha) subunits outside the cell.
• The receptor contains:
  • 2 α subunits → outside the cell; bind insulin.
  • 2 β subunits → cross the cell membrane and act inside the cell.
• S–S = disulfide bonds holding the receptor parts together.
• Insulin binding activates the β subunits.
• β subunits undergo autophosphorylation.
• This activates tyrosine kinase.
• Tyrosine kinase phosphorylates insulin receptor substrates (IRS) and other enzymes.

What does IRS activation cause?

• ↑ Glucose transport → glucose transporters move to the membrane → glucose enters the cell.
• ↑ Glycogen synthesis → glucose is stored.
• ↑ Fat synthesis
• ↑ Protein synthesis
• ↑ Growth and gene expression

Diagram arrows

• Solid red arrows → show the different cellular effects of insulin.
• Dotted red arrow → shows movement of glucose transporters toward the cell membrane.

🔑 KEY CONCEPT

Insulin → α subunit → β autophosphorylation → tyrosine kinase → IRS → glucose uptake + glycogen, fat & protein synthesis + growth

In one line:
Insulin tells the cell to take in glucose and store/build nutrients.

EFFECTS OF INSULIN ON CARBOHYDRATE METABOLISM

• After a high-carbohydrate meal, absorbed glucose rapidly raises blood glucose.
• This stimulates rapid insulin secretion.
• Insulin then promotes rapid uptake, storage, and use of glucose by most tissues.
• These effects are especially important in:
  • Muscles
  • Adipose tissue
  • Liver

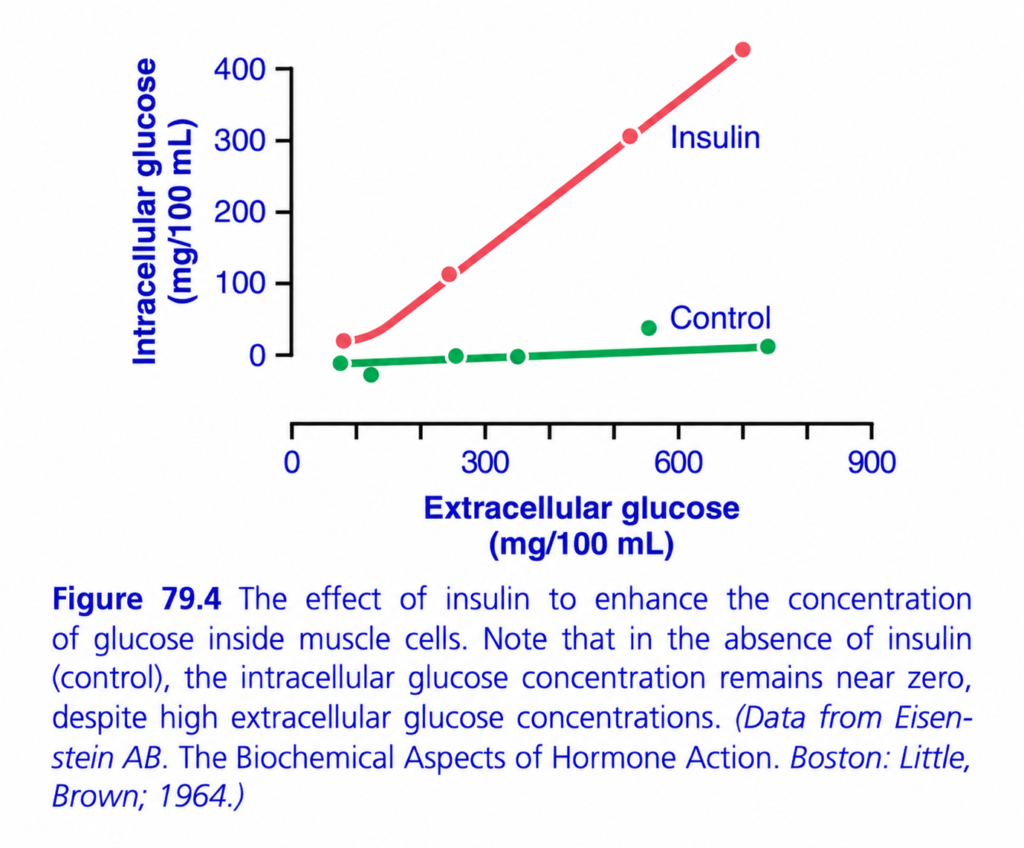

Insulin Promotes Muscle Glucose Uptake and Metabolism

• During most of the day, resting muscle uses mainly fatty acids for energy rather than glucose.
• This is because the resting muscle membrane is normally only slightly permeable to glucose.
• Significant glucose entry into muscle usually requires insulin stimulation.
• Between meals, insulin levels are relatively low, so only small amounts of glucose enter muscle cells.
• Muscles use large amounts of glucose mainly in two conditions:
  • During moderate or heavy exercise:
    • Muscle contraction causes GLUT 4 transporters to move from intracellular storage sites to the cell membrane.
    • GLUT 4 then increases glucose entry into muscle cells.
    • Therefore, exercise can increase muscle glucose uptake without requiring large amounts of insulin.
  • During the few hours after a meal:
    • Blood glucose rises.
    • The pancreas secretes large amounts of insulin.
    • Insulin rapidly increases glucose transport into muscle cells.
    • During this period, muscle uses glucose preferentially instead of fatty acids.

KEY CONCEPT

• High-carbohydrate meal → ↑ blood glucose → ↑ insulin → ↑ glucose uptake, storage, and use.
• Resting muscle normally uses mainly fatty acids because glucose entry is low between meals.
• Muscle uses large amounts of glucose during:
  • Exercise → muscle contraction → GLUT 4 moves to membrane
  • After a meal → ↑ insulin → ↑ glucose entry
• After meals, muscle temporarily prefers glucose over fatty acids.

Conceptual Examples

• Between meals:
  ↓ Insulin → little glucose enters resting muscle → muscle mainly uses fatty acids.
• During exercise:
  Muscle contraction → GLUT 4 moves to cell membrane → more glucose enters muscle even without much insulin.
• After a meal:
  ↑ Blood glucose → ↑ insulin → ↑ muscle glucose uptake → muscle uses glucose instead of fatty acids.

Storage of Glycogen in Muscle

• After a meal, if muscles are not exercising, much of the glucose entering muscle cells is stored as muscle glycogen instead of being used immediately for energy.
• Muscle glycogen can accumulate up to about 2%–3% concentration.
• This stored glycogen can later provide energy for muscle activity.
• Glycogen is especially useful during short periods of very intense exercise.
• It can also provide anaerobic energy for a few minutes.
• During this process: Glycogen → glycolysis → lactic acid + energy
• This energy production can occur even when oxygen is absent.

Quantitative Effect of Insulin to Facilitate Glucose Transport Through the Muscle Cell Membrane

• The effect of insulin on muscle glucose transport is shown in Fig. 79.4.
• Without insulin, intracellular glucose remains almost zero, even when extracellular glucose rises as high as 750 mg/100 mL.
• When insulin is present, intracellular glucose may rise to about 400 mg/100 mL.
• Therefore, insulin can increase glucose transport into resting muscle cells by at least 15-fold.

KEY CONCEPT

• After a meal, unused glucose in muscle is stored as glycogen.
• Muscle glycogen provides rapid energy, especially during intense or anaerobic activity.
• Insulin greatly increases glucose entry into resting muscle cells—at least 15-fold.

Conceptual Examples

• After a meal without exercise:
  ↑ Glucose enters muscle → not immediately needed for energy → stored as glycogen.
• During intense exercise:
  Muscle glycogen → glycolysis → lactic acid + rapid anaerobic energy.
• Insulin effect:
  Without insulin → very little glucose enters resting muscle.
  With insulin → glucose entry increases greatly → up to at least 15 times more transport.

Figure 79.4 — Effect of Insulin on Glucose Entry into Muscle Cells

🧠

Think of insulin as a key that opens the muscle-cell door for glucose.

• Without insulin → door almost closed → very little glucose enters.
• With insulin → door opens → glucose easily enters the muscle cell.

📊 Understanding the graph

X-axis = Extracellular glucose (mg/100 mL)
This means glucose outside the muscle cell. Moving left → right means more glucose is available outside.

Y-axis = Intracellular glucose (mg/100 mL)
This means glucose inside the muscle cell. Moving upward means more glucose has entered the cell.

🔴 Red line = INSULIN present

The red line rises strongly upward.

• At low extracellular glucose → intracellular glucose is low.
• As extracellular glucose rises → intracellular glucose rises greatly.
• At about 250 mg/100 mL outside → ~100 mg/100 mL inside.
• At about 500 mg/100 mL outside → ~300 mg/100 mL inside.
• At still higher extracellular glucose → intracellular glucose becomes >400 mg/100 mL.

Meaning: Insulin greatly increases the ability of muscle cells to take up glucose.

🟢 Green line = CONTROL = No insulin

The green line stays almost flat near zero even when extracellular glucose becomes very high.

So:

Lots of glucose outside + no insulin → almost no glucose gets inside.

This shows that simply increasing blood/extracellular glucose is not enough for efficient glucose entry into muscle cells.

🔴🟢 What do the circles mean?

The circles are actual experimental measurement points.

• 🔴 Red circles = measured intracellular glucose with insulin.
• 🟢 Green circles on the control line = measured values without insulin.
• The lines simply connect these measured points to show the overall trend.
• The isolated green circle beside the word “Control” is mainly a label/legend marker, not another point on the curve.

⭐ KEY CONCEPT

Insulin acts like a key for muscle glucose uptake:

Insulin present → glucose transport into muscle ↑↑ → intracellular glucose ↑↑

Insulin absent → glucose transport remains very low → intracellular glucose stays near zero

So the huge gap between the red and green lines shows the powerful effect of insulin on glucose entry into muscle cells.

Abel ED, Gloyn AL, Evans-Molina C, et  al. Diabetes mellitus–
progress and opportunities in the evolving epidemic. Cell.
2024;187:3789–3820.
Abdul-Ghani M, Maffei P, DeFronzo RA. Managing insulin resistance:
the forgotten pathophysiological component of type 2 diabetes.
Lancet Diabetes Endocrinol. 2024;12:674–680.
Alonge KM, Porte D, Schwartz MW. Distinct roles for brain and pan￾creas in basal and postprandial glucose homeostasis. Diabetes.
2023;72:547–556
